How to set up the Veo Stadium Mount

In this guide, we’ll show you how to assemble the Veo Stadium Mount step by step.

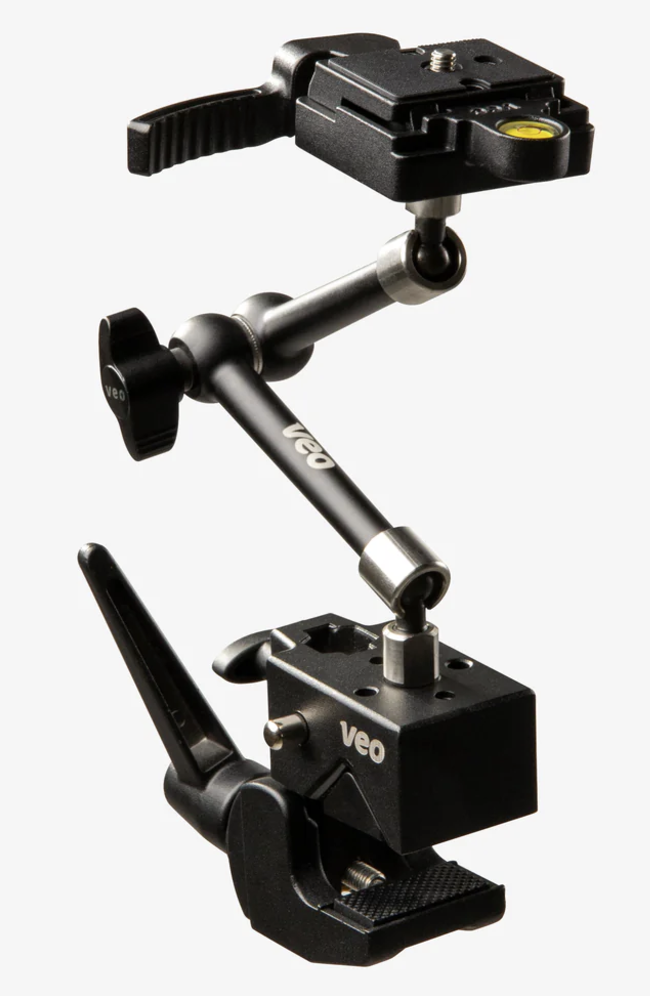

The Veo Stadium Mount helps you safely secure your Veo camera to a scaffold or stand by the pitch. This setup gives you the height needed for clear, professional recordings of your matches. The mount is designed to be stable and easy to use, so you can focus on capturing the game.

Before you begin

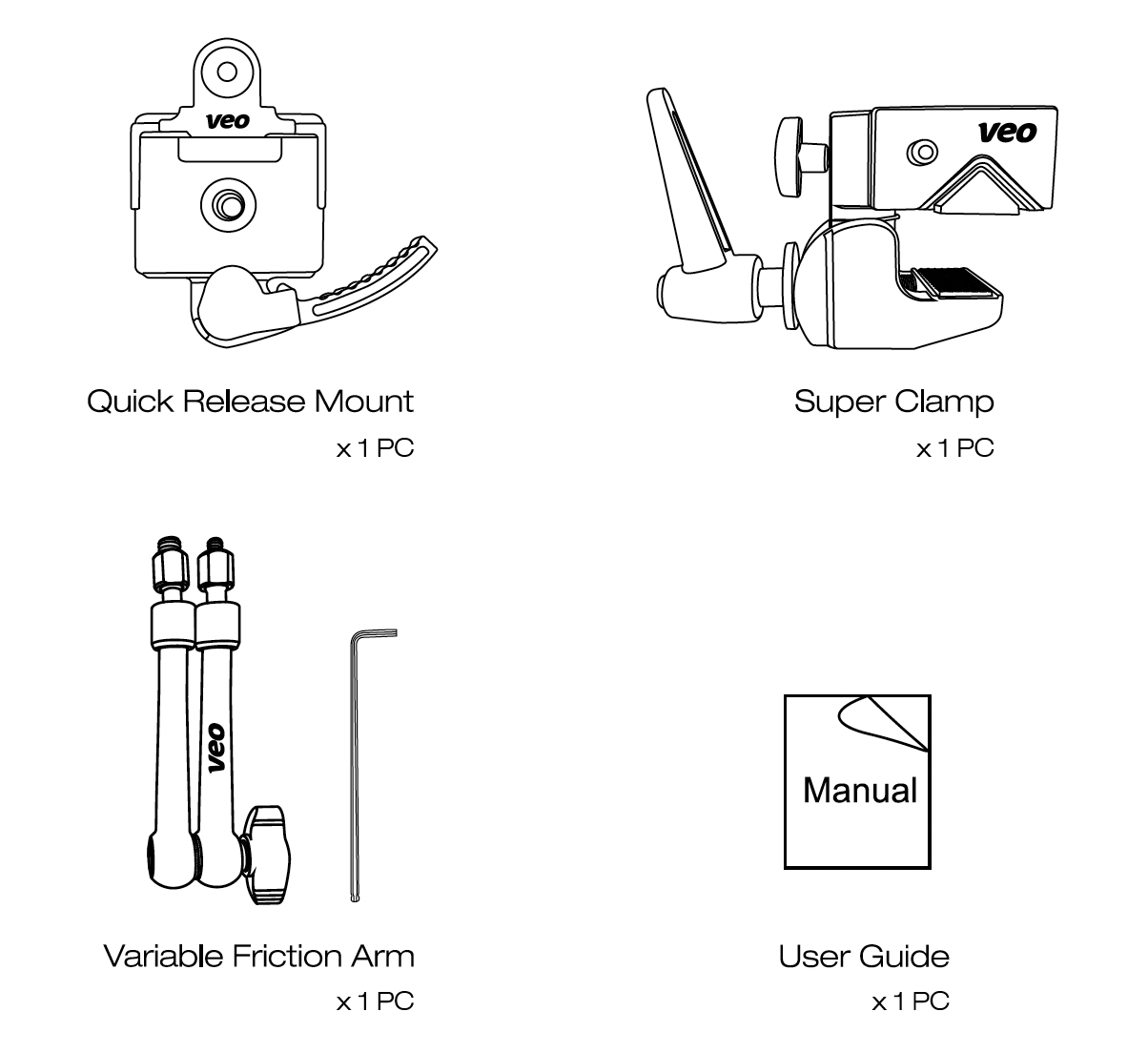

Ensure you have the complete Stadium Mount package, including:

• 1x Quick Release Mount
• 1x Super Clamp
• 1x Variable Friction Arm and allen key
• 1x User manual

Assembly instructions

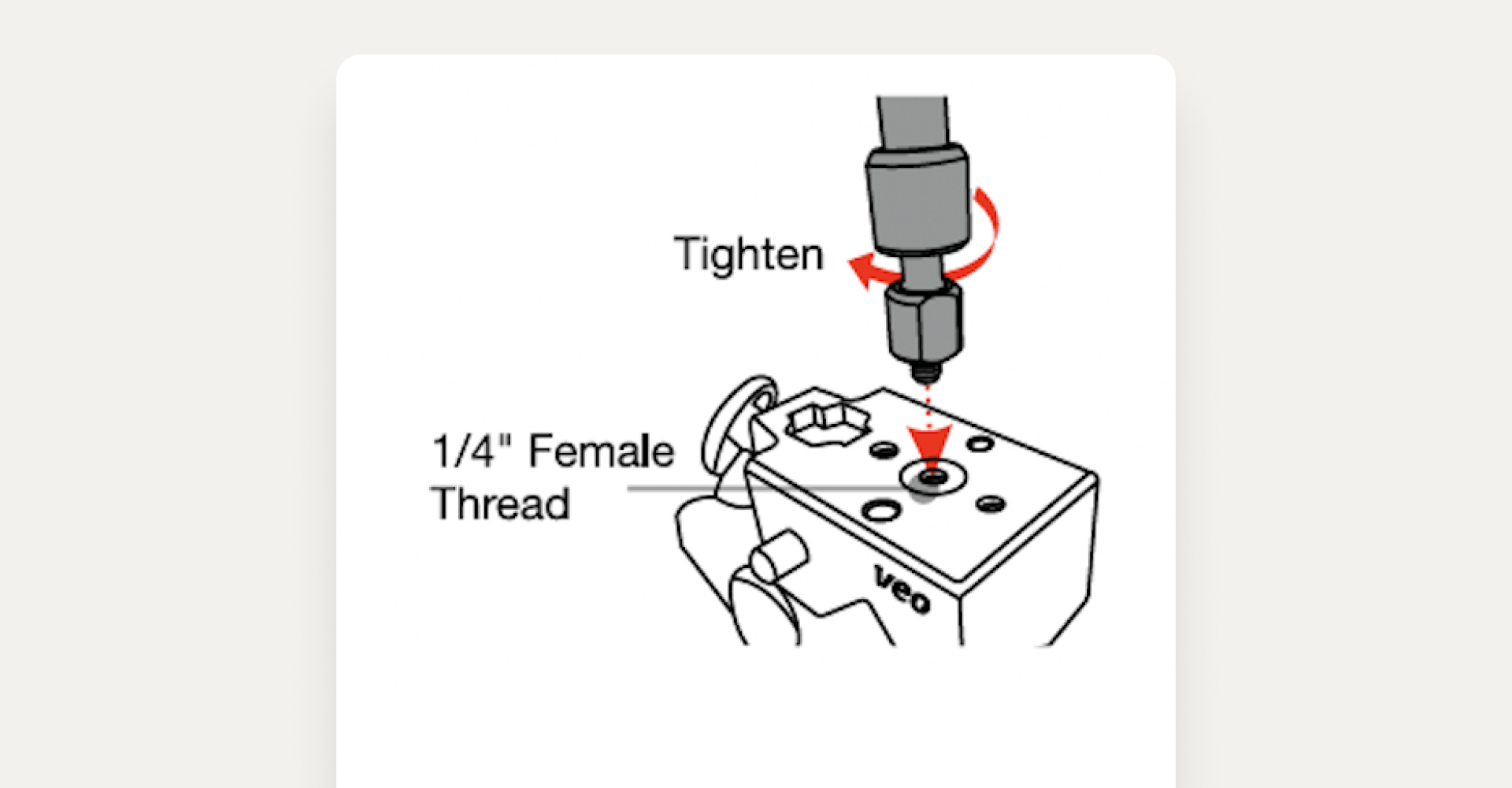

1. Attach the variable friction arm to the super clamp.

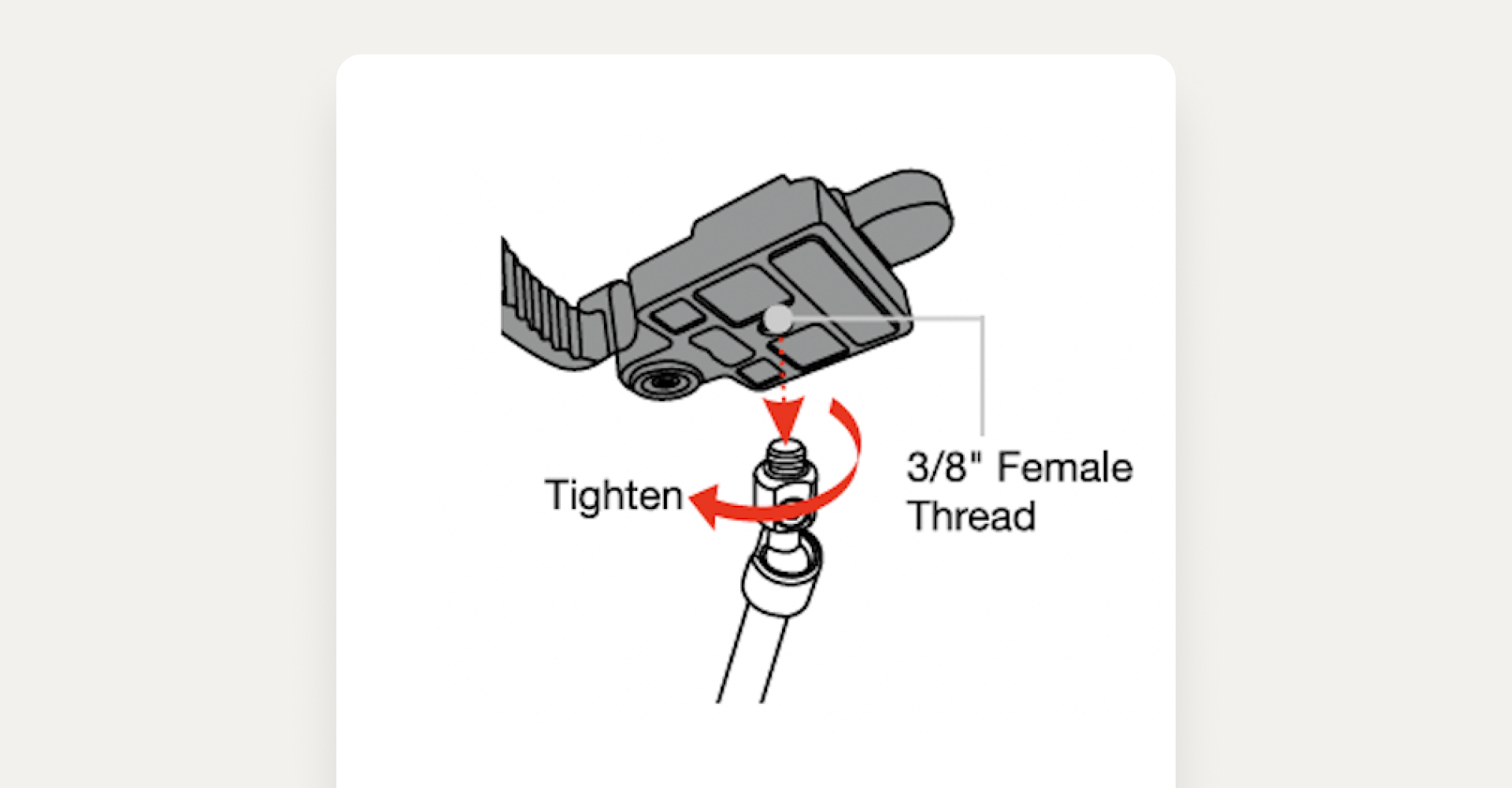

2. Attach the quick-release mount to the friction arm.



3. Fix the super clamp to a tube or a flat surface by tightening the locking handle.

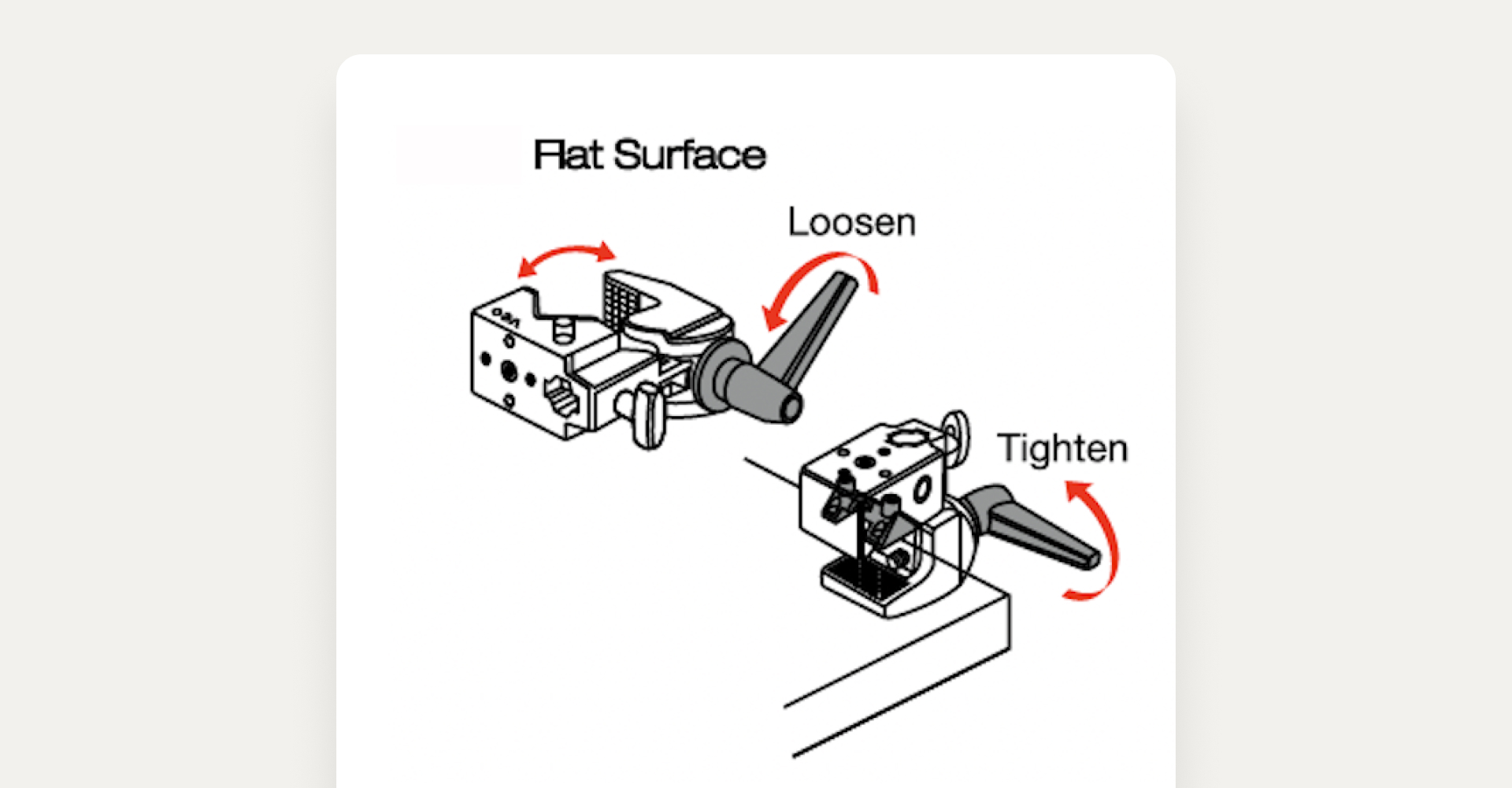

   Flat surface: Keep the wedge in place. After adjusting to the desired position, turn the handle clockwise to tighten the clamp.

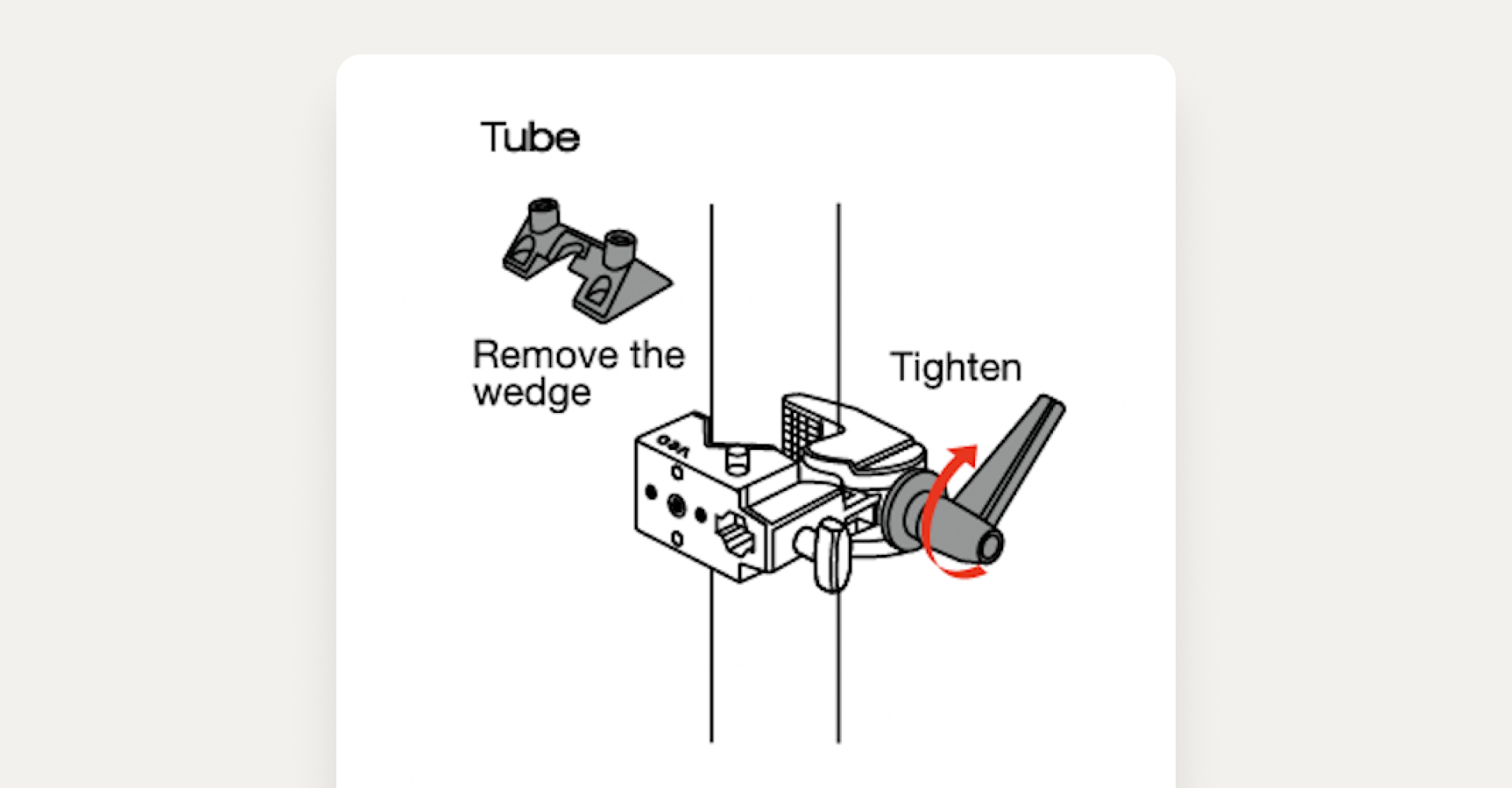

   Tube: Remove the wedge. After adjusting to the desired position, turn the handle clockwise to tighten the clamp.

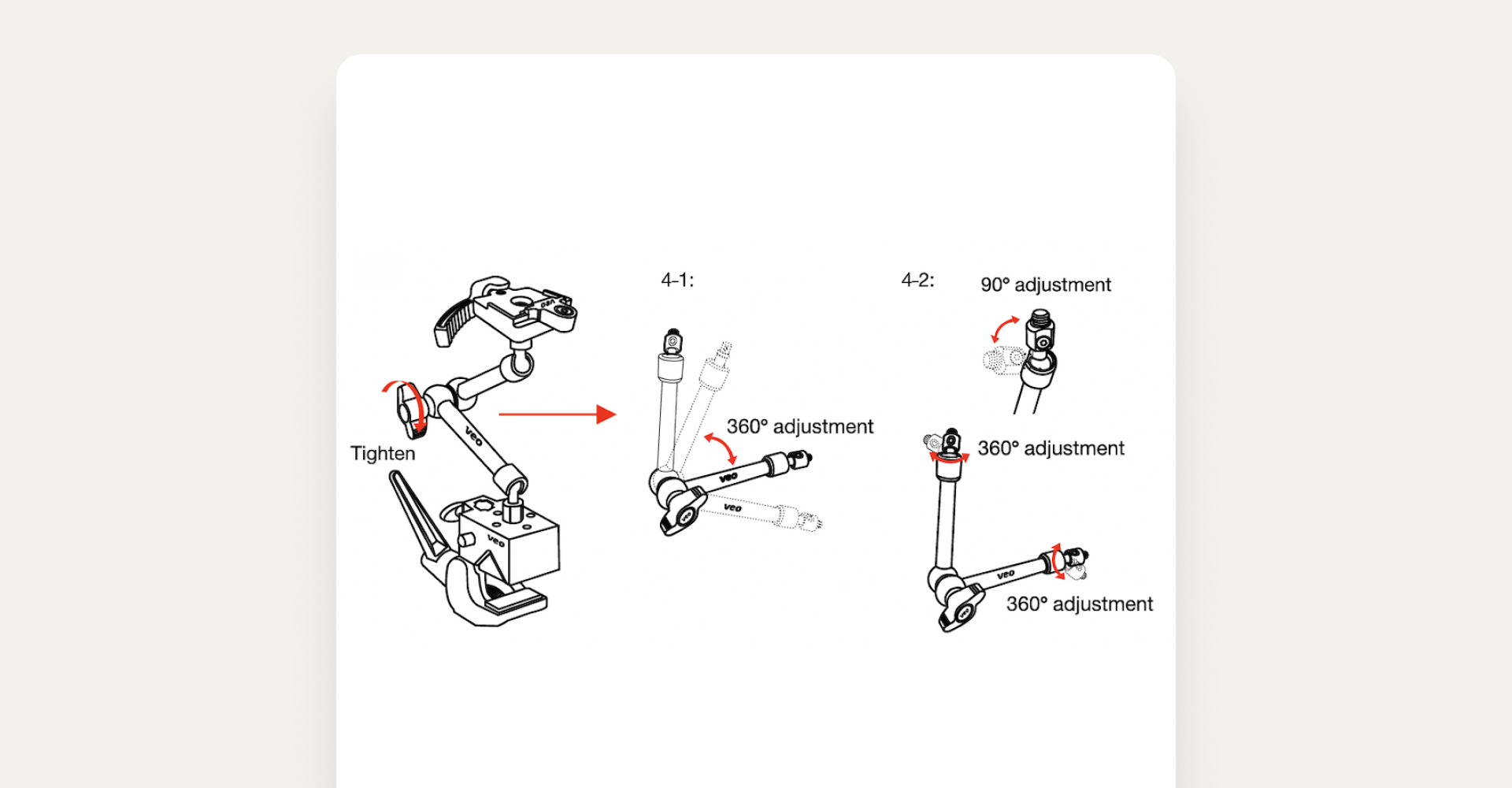

4. Adjust the angles in all joints by turning the knob to loosen or tighten.

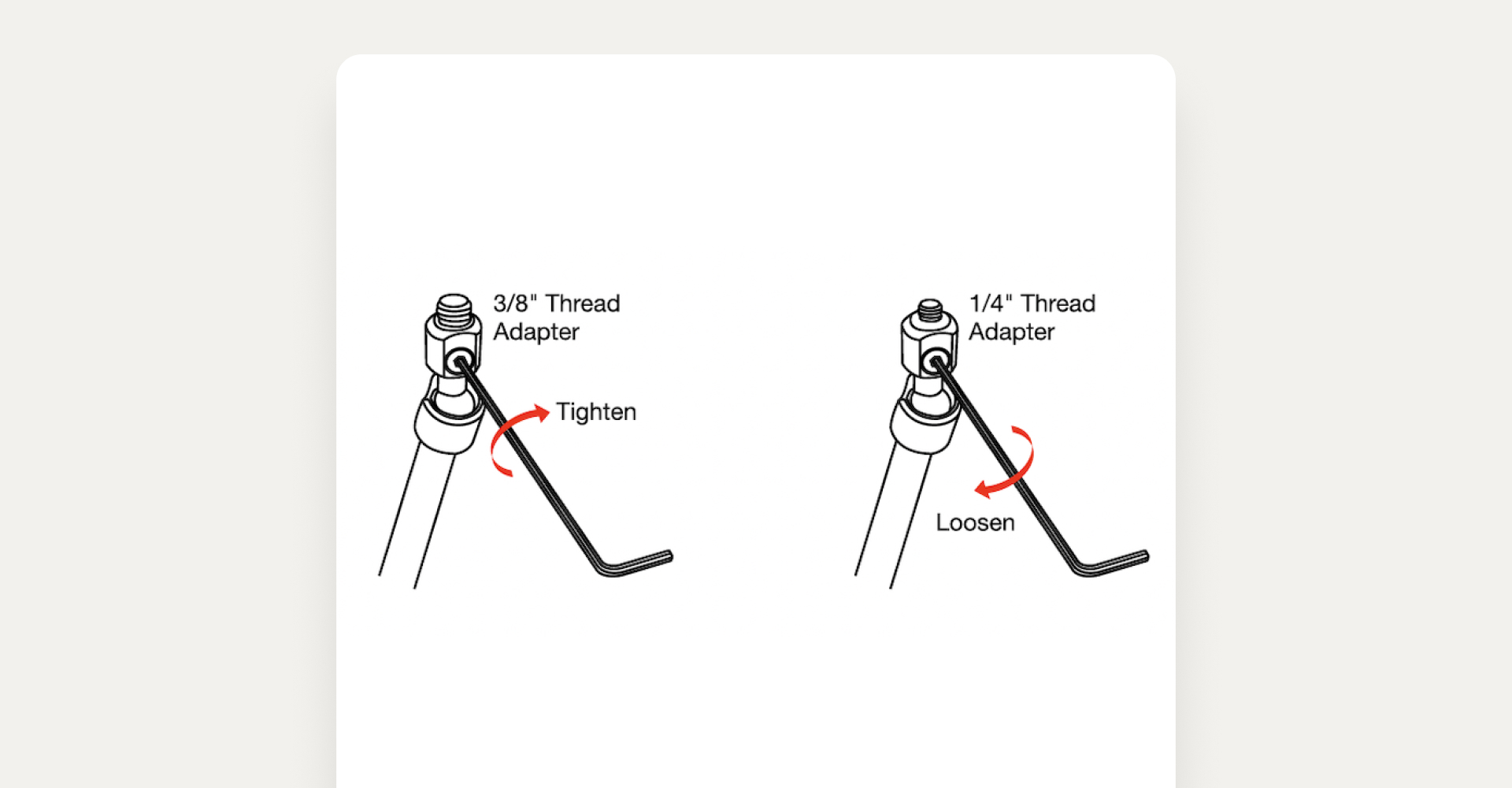

5. Fix the 1/4" and 3/8" threaded adapters using the included allen key.



After assembling the Stadium Mount, you are ready to install the camera into the quick mount. See how to install the camera to the quick mount.

Safety instructions

Follow these safety guidelines to prevent accidental damage or injury:

• The stadium mount is intended for use with Veo products only.
• Ensure all locking knobs are fully tightened before mounting the Veo camera.
• Do not exceed the maximum load capacity of 2.5kg / 5.2lb.
• Level the quick-release mount before attaching the Veo camera.
• During use, confirm all parts remain securely locked.
• Do not leave the mount unattended in public areas. Keep out of reach of children.
